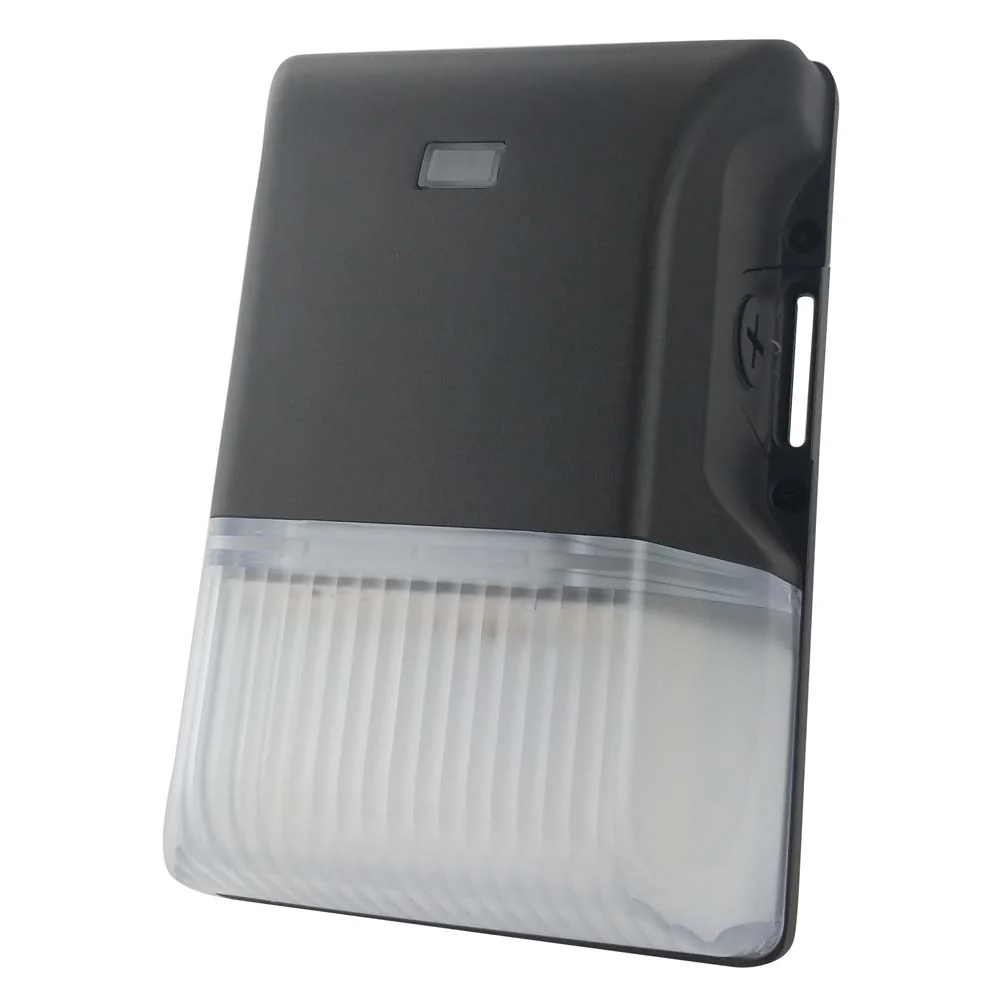

Sunlite 15 Watt LED Mini Wall Pack light fixtures are designed to provide ample outdoor illumination. This dimmable wall mount fixture provides a bright 1800 lumen output at equivalent to a 100 watt light bulb. It features innovative technology that allows you to choose the color temperature at the time of installation. Select 3000K Warm White, 4000K Cool White, or 5000K Super White depending on your preference using a switch located on the back. It features a built-in photocell for automatic dusk to dawn operation. With 80 built-in LEDs it is an energy efficient and maintenance-free lighting solution with a long life span of up to 50,000 hours. Each fixture uses only 15 watts of electricity and has a low estimated yearly energy cost of $1.81. (Based on 3 hours/day use at $0.11/kWh) The weather-resistant die-cast aluminum body is finished in bronze and houses a durable frosted polycarbonate lens. Ideal for security and general purpose lighting along the perimeter of buildings, entryways or anywhere extra lighting is needed. For use with 120-277 volt electrical service. UL Listed for wet location installation. 80 CRI. IP65 Rated. Fixture measures 8.60 inches high, 5.80 inches wide, 3.10 inches deep.

Features:
- COLOR TUNABLE LED TECHNOLOGY - Sunlite LED Mini Wall Pack light fixtures are designed to provide ample outdoor illumination. It features innovative technology that allows you to choose the color temperature at the time of installation. Select 3000K Warm White, 4000K Cool White, or 5000K Super White depending on your preference using a switch located on the back.
- ENERGY EFFICIENT - Using only 15 watts of energy these fixtures have a low estimated yearly energy cost of $1.81. (Based on 3 hours/day use at $0.11/kWh) With 80 built-in LEDs it is an energy efficient and maintenance-free lighting solution with a long life span of up to 50,000 hours.
- BUILT-IN PHOTOCELL - Built-in photocell for automatic dusk to dawn operation. They provide a bright 1800 lumen output. Equivalent to a 100 watt light bulb.
- MULTIPLE OUTDOOR USES - These commercial grade fixtures feature a weather-resistant die-cast aluminum body finished in bronze and house a durable frosted polycarbonate lens. Ideal for security and general purpose lighting along the perimeter of buildings, entryways or anywhere extra lighting is needed.
- UL LISTED - UL Listed for wet location installation. They operate on 120-277 volt service. 80 CRI. IP65 Rated. Fixture measures 8.60 inches high, 5.80 inches wide, 3.10 inches deep.

GENERAL CHARACTERISTICS
Fixture Life Hours	50,000 hrs
Material	Aluminum
Lens Finish	Clear
Finish	Bronze
Life (based on 3hr/day)	45.7
Dimmable	TRUE
ELECTRICAL CHARACTERISTICS
Watts	15
Volts	100-277
LIGHT CHARACTERISTICS
Brightness	1800 Lumens
Color Accuracy (CRI)	80
Light Appearance	CCT Tunable
Color Temperature	30K/40K/50K
FIXTURE CHARACTERISTICS
Shape	Rectangle
Number of Lights	1 - Light
Mounting	Wall
Use Location	Outdoor
PRODUCT DIMENSIONS
PRODUCT DATA
Item Number	85527-SU
UPC	653703855271
Description	LFX/MWP/SCT/15W/PC

Manual:

85527-SU Data Sheet
