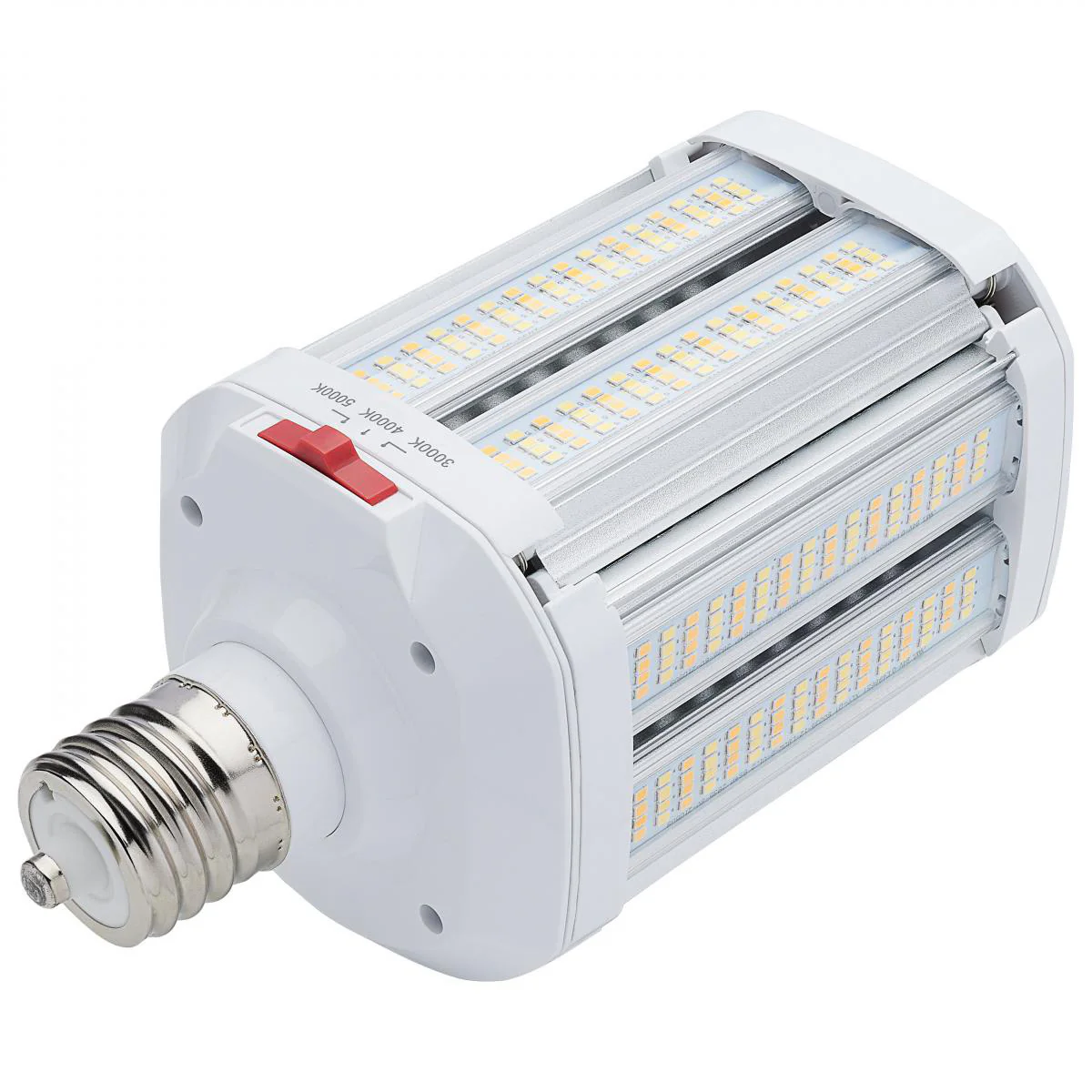

Satco LED Hi-lumen Shoe Box 60/70/80w and Select CCT 3K/4K/5K Mogul Extended 100-277V
Description

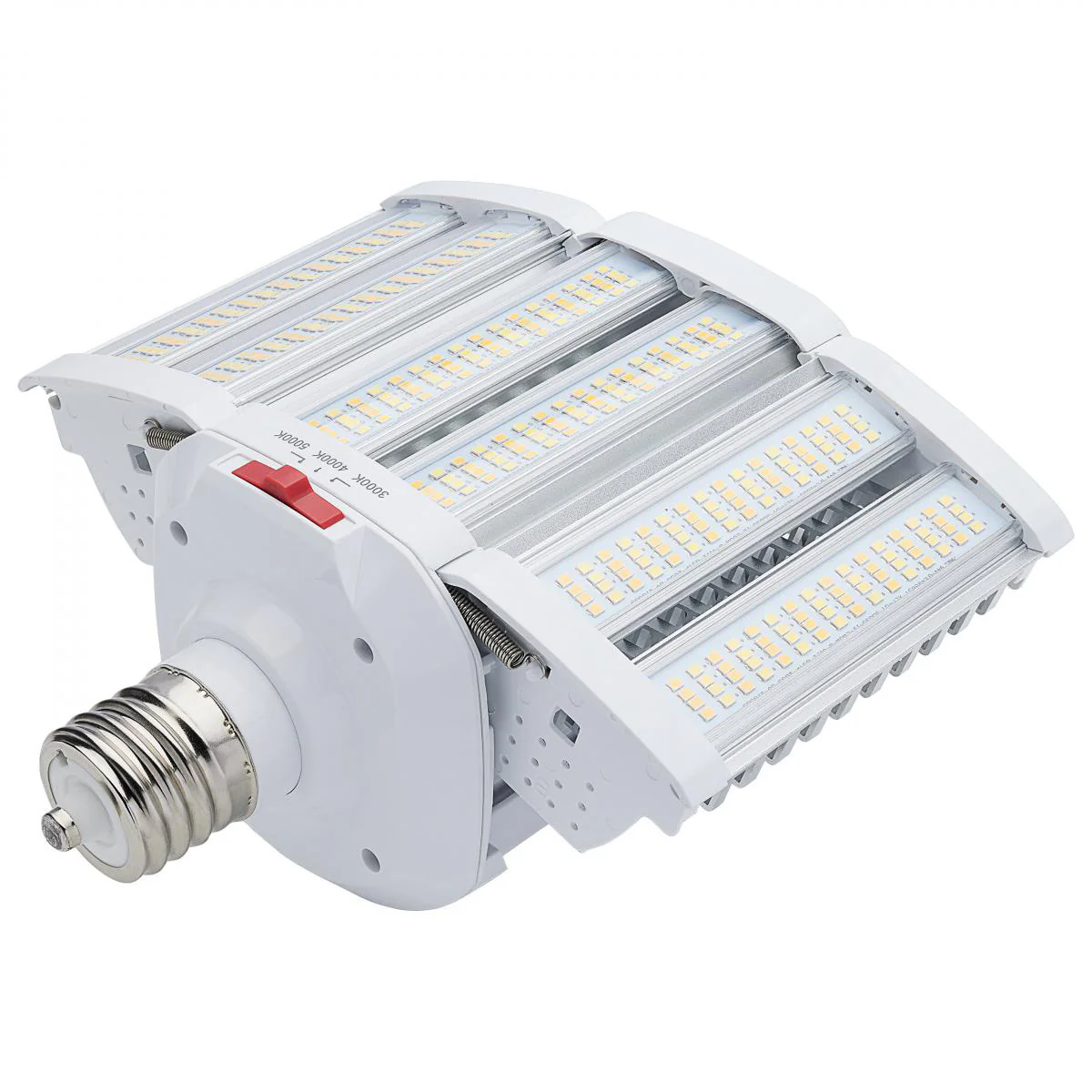

Satco Hi-Pro shoebox lamps have just gotten much smarter! The lamps are suitable for new lamps and metal halide replacements. The shoebox lamp offers higher efficiency and improved heat dissipation. This unique design of its expandable sides helps to make for an easy installation. When opened in position, the lamp delivers a 180-degree beam angle that focuses light distribution to where it is needed most.
Features:- LED Expandable Light Panner with 320deg Rotating Mogul Extended (EX39) base
- Ideal Shoebox Replacement with advanced heat dissipation
- Selectable Wattage: 60W/9000Lm, 70W/10150Lm, 80W/11200Lm; Efficiency: 150/145/140 lumens per Watt
- Selectable Color Temperature: 3000/4000/5000K
- Voltage: 120-277V
- Beam angle: 180deg
- HID Equivalent: 200W, 250W, 320W
- Ballast Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Specs
| General | |
| Brand | Satco |
| Watts | 60W/70W/80W |
| HID Equivalent | 200W/250W/320W |
| Incand. Equivalent | 400W |
| Volts | 100V-277V |
| Shape | Integrated LED |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Soft White to Natural Light |
| CRI | +80 |
| Lumens | 9000L/10150L/11200L |
| Beam Spread | 180 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Technology | Expandable Hi-Pro Shoebox LED |
| Electrical | |
| Volts | 120V-277V |
| Operating Frequency | 50/60 Hz |
| Power Factor | 0.9 |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Operating Temperature | -30C (-22F) to +45C (+113F) |
| Dimming Type | Step Dimming - Only dimmable through wattage selection switch on lamp |
| Operating Position | Universal |
| Surge Protection | Built-in surge protection - 4KV |
| Physical | |
| MOL | 8.86 |
| MOD | 8.9 |
| Weight (lb.) | 2.43 |
| Additional Information | |
| Rated For Enclosed Fixture | Yes |
| Min Compartment Size | Length: 11 in. Width: 11 in. Height: 9.2 in. |
| Installation Notes | Not for use in vapor tight fixtures. |
| Warranty | 5 Years Limited |
| Compliance | |
| Safety Listing | cULus - Certified; cULus - Classified; cULus - Liste |
| Location Rating | Damp |
| DLC Approved | Yes |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Each UPC | 045923298837 |
