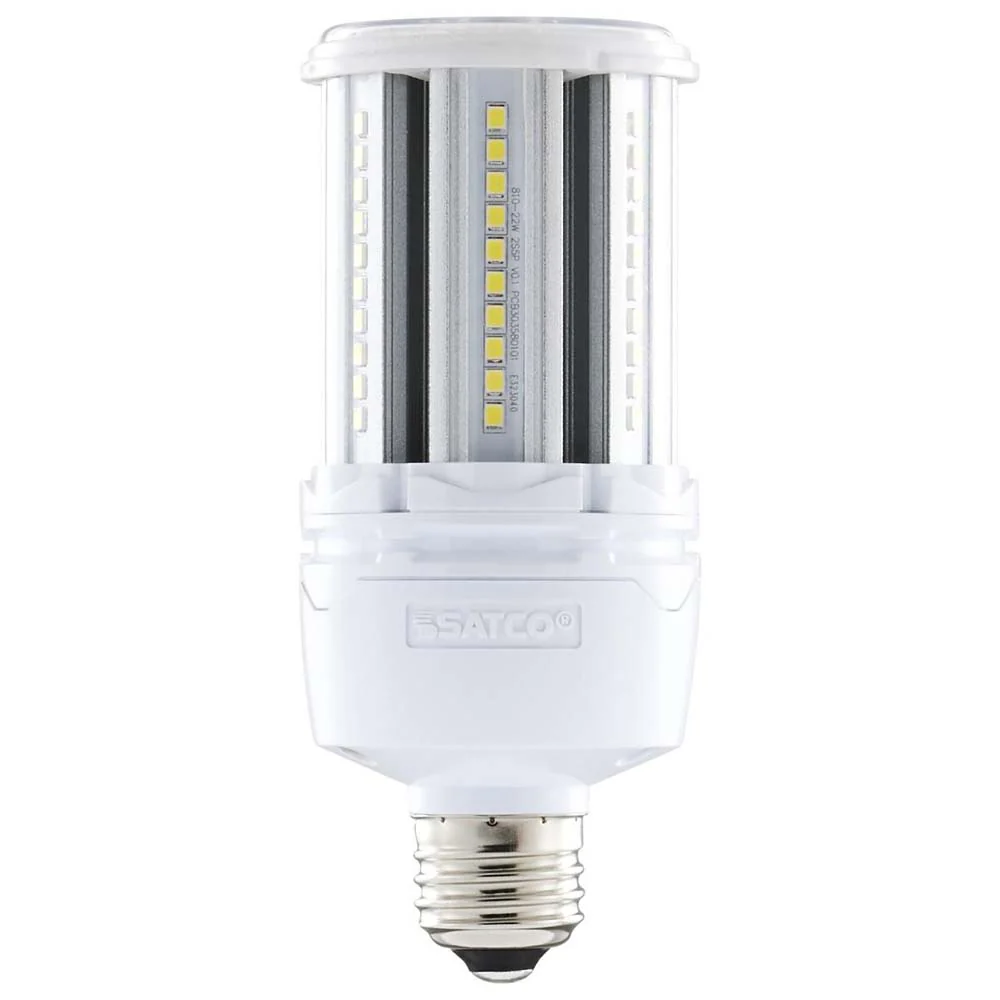

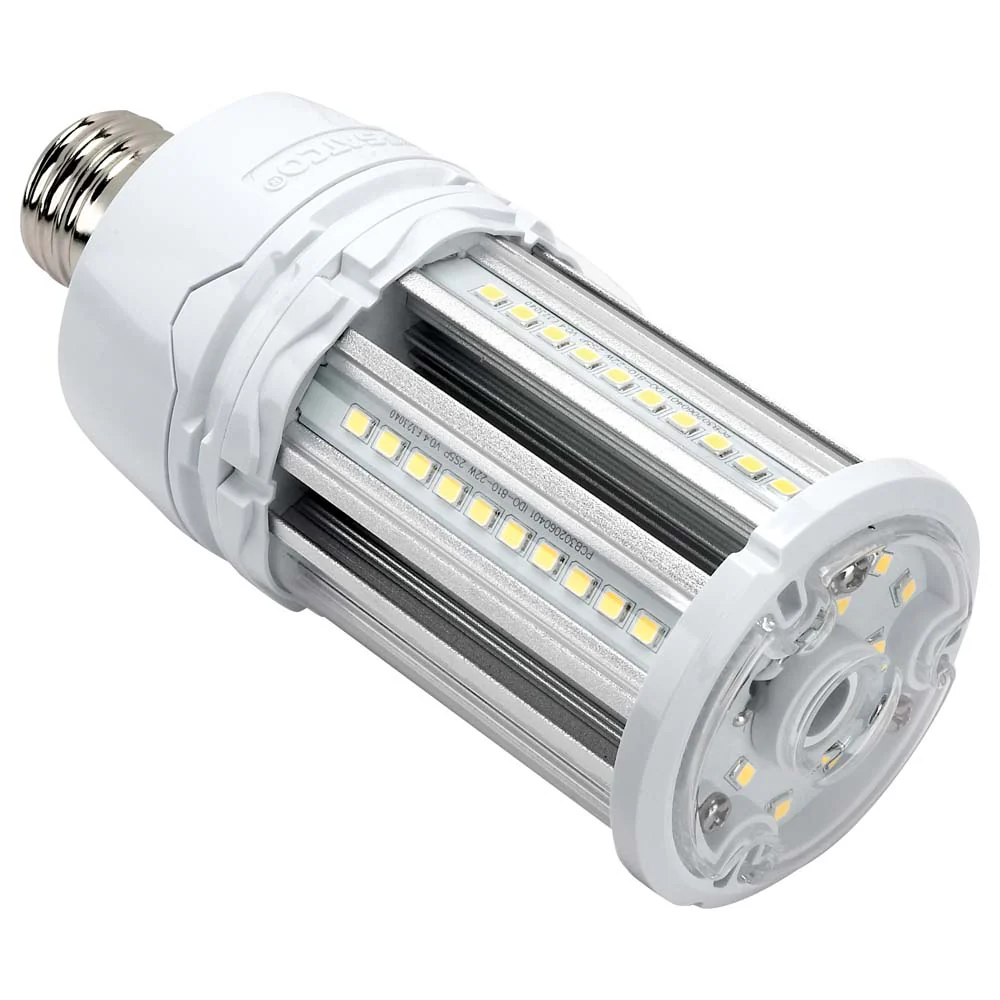

Satco 22w LED HID Replacement 80 CRI 5000K Medium base Economy Hi-Pro 100V-277V

Features:
- High Lumen Omni-directional LED for Industrial / Commercial applications
- Replaces HID, CFL, and Incandescent
- Ballast by-pass - Direct wire only 100V - 277V
- UL approved for totally enclosed fixtures
- Damp location - IP64 rated
- For outdoor & indoor use
- Base up, base down or horizontal operation
- Emits no UV light / Contains no mercury (Hg)
- 5 year limited warranty
- cULus listed

Additional Technical Specifications
- Power Factor: 0.9
- Operating Frequency 50-60Hz
- Working Voltage AC90-305V

- Shatter resistant materials, acceptable for use in food prep areas
- Minimum Compartment Size

General
Watts	22W
Specifications
HID Equivalen	100W
Volts	100V-277V
Shape	Corncob
Base	E26 Medium
CCT (Kelvin)	5000K
Temperature	Natural Light
CRI	80

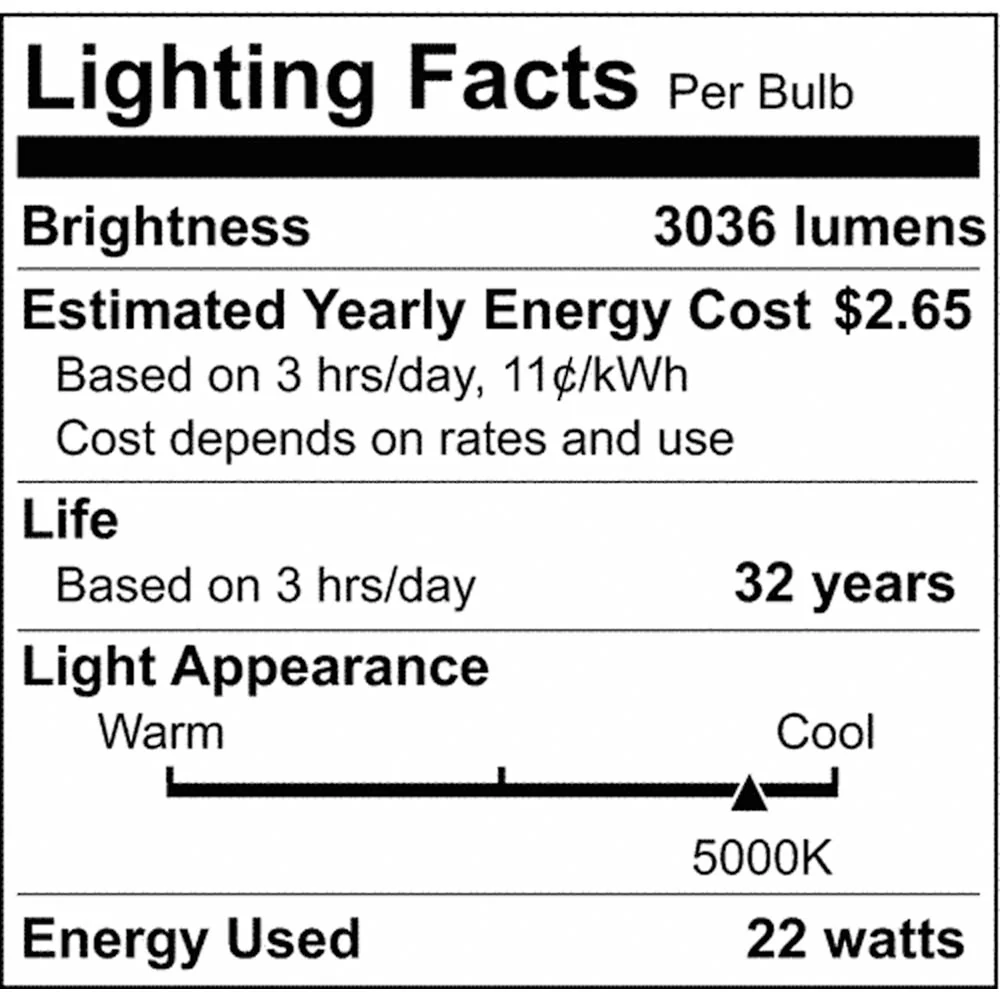

Lumens	3036L
Beam Spread	300
Dimmable	Non-Dimmable
Hours Rated	35000
Lamp Type	LED HID
Technology	LED
Min Compartment Size	Length: 6 in. Width: 6 in. Height: 8.5 in.
Ballasting Requirements	Ballast Bypass
Electrical
Operating Frequency	50/60 Hz
Power Factor	>0.9
Burning Position	Base Up, Base Down, or Horizontal
Surge Protection	Built-in surge protection - 2KV
Operating Temperature	-30C (-22F) to a maximum of +65C (+149F)
Physical
MOL	5.71
MOD	2.39
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Housing Color	White
Photocell	No
Weight (lb.)	0.77
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	3 Year Limited
Safety Listing	cULus Classified, cULus Listed
Location Rating	Damp
Energy Star	No
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S49391 Data Sheet
