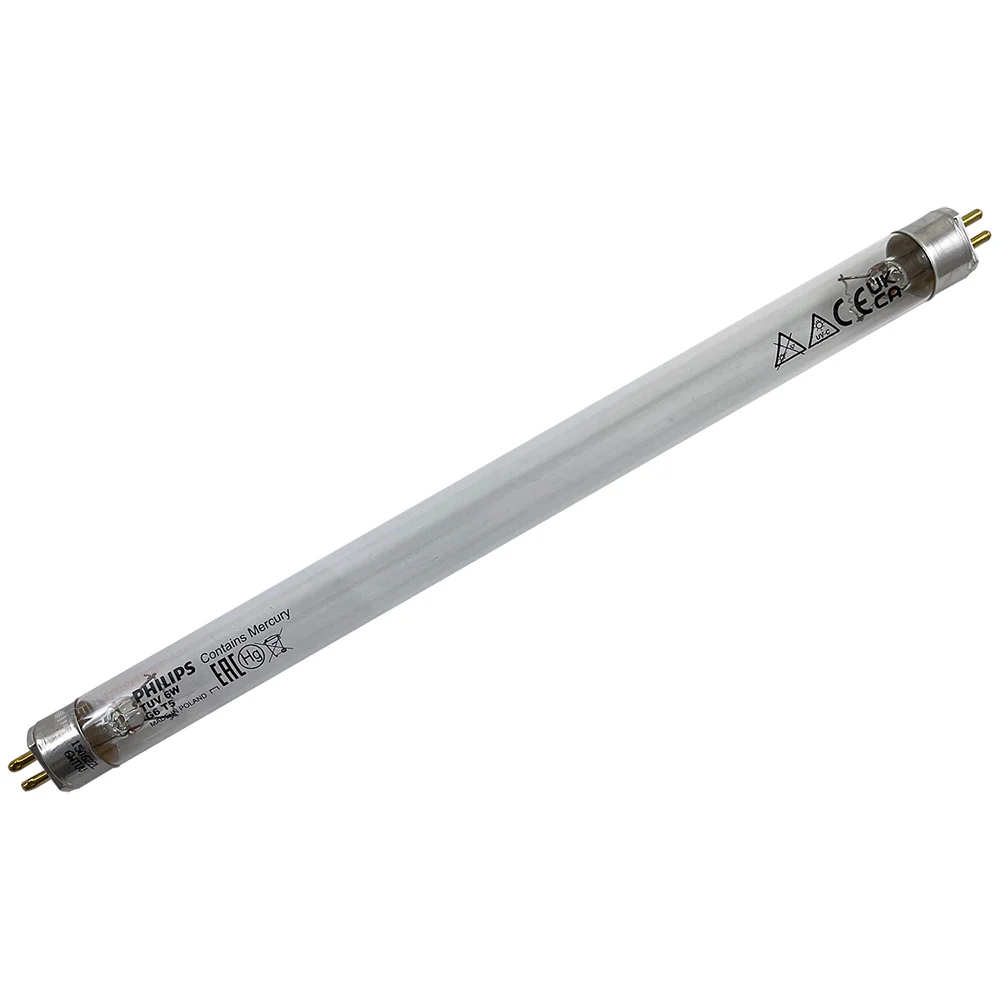

Philips TUV 6W FAM/10X25BOX Germicidal Lamp for water and air disinfection

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Application:
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the lifetime of the lamp
- Useful lifetime of 9,000 hours
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size - Warning sign on lamp indicates that the lamp radiates UVC
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Brand	PHILIPS
12NC Code	928000704013
SKU	244855, 623645
Abbreviation Name	TUV 6W FAM/10X25BOX
Base	G5
Bulb Type	UVC Germicidal Bulbs
Diameter (in)	1

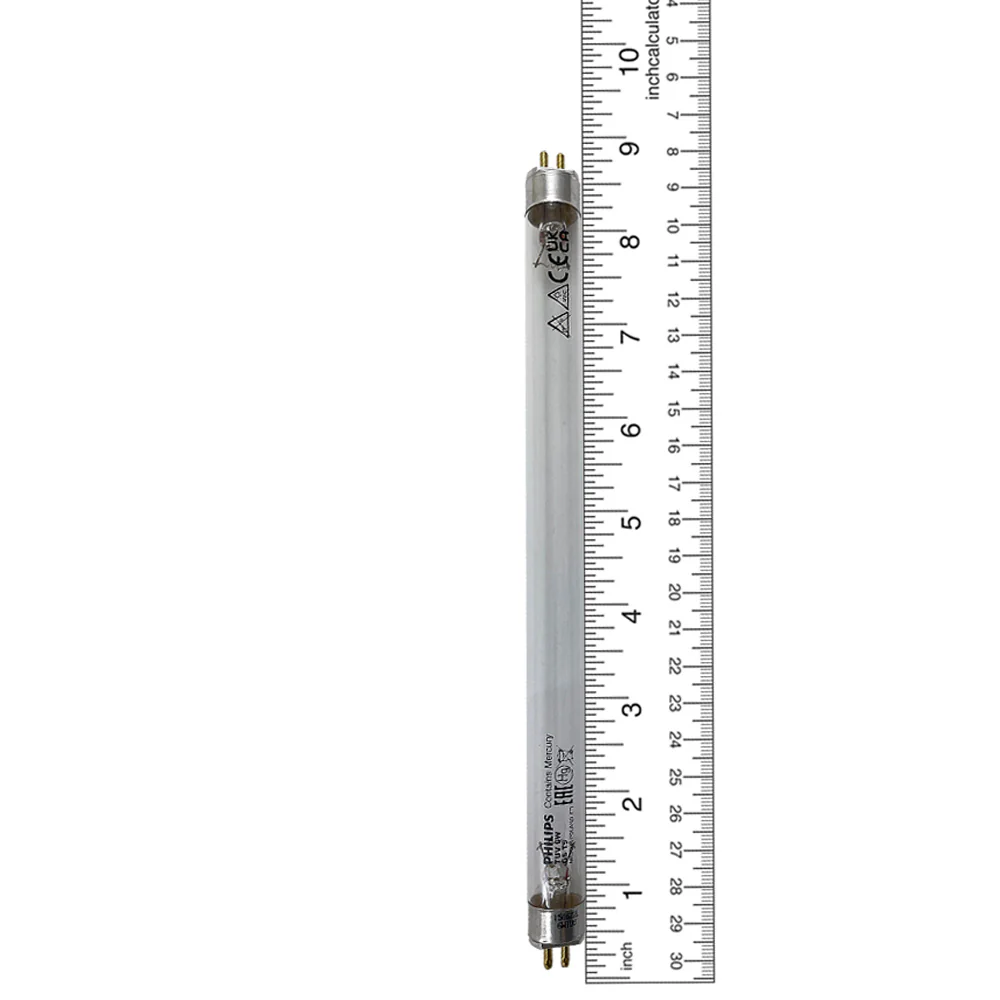

Maximum Overall Length (in)	9
Rated Life (Hours)	5000
Shape	T5
Wattage (W)	6W
Voltage (V)	42V
Mercury (Hg) Content	4.4mg
UV-C Radiation	1.7W
EAN/UPC	8711500623645
EAN Case	8711500623669
Full product code	871150062364527

Manual:

Ozone emission statement Signify TUV 4W up to 800W
Germicidal Tubular Fluorescent EU Declaration of Conformity
