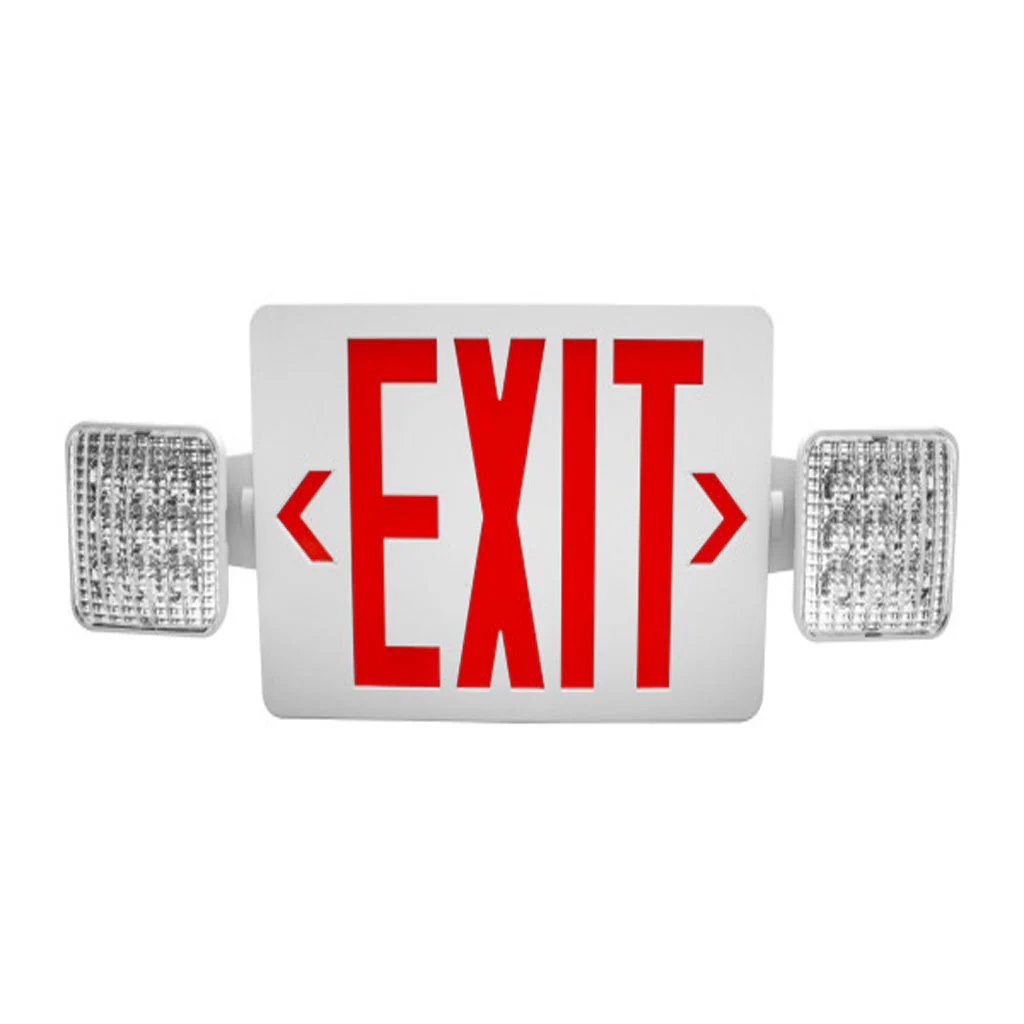

Nicor ECL3 Self-Diagnostic LED Emergency Exit Sign Combo Red Lettering
Description
The NICOR ECL3 Series Self-Diagnostic LED Emergency Exit Sign Combo with Battery Backup Lighting features a low-profile design with the latest in emergency lighting technology. The self-diagnostic function automatically tests and reports on the status of the fixture to satisfy NFPA safety requirements. A redesigned housing keeps the fixture lightweight and very easy to install with the EZ Quick-Connect mounting plate. The injection-molded thermoplastic housing is flame rated (UL-94 5VA) for added safety. An integrated Nickel-Cadmium battery provides 90-minutes of emergency run-time that kicks on if the power goes out. Two emergency LED heads on each side are removeable and adjustable for increased visibility when it is needed most. The ECL3 is available with red or green lettering and includes an additional faceplate for the backside and removable directional arrows. Protected by NICOR 1-Year Limited Warranty.
Features:- Self-Diagnostic with Test and Charge/Status Indicator
- Meets NFPA 70 and NFPA 101 Requirements
- UL-94 5VA Flame Rated Thermoplastic ABS Housing
- Removeable LED Heads with 330Tilt and 200Rotation
- Nickel-Cadmium Battery with 90-Minute Emergency Operation
- 120/277VAC Dual-Voltage Operation
- Surface Wall Mount or Ceiling Mount Installation
- Universal EZ Quick-Connect Mounting Plate Included
- Hardware and Installation Instructions Included
- UL 924 Compliant and Damp Location Rated
- Protected by NICOR 1-Year Limited Warranty
Specs
| Size | 12 |
| Product Color | White, Red Letters |
| Finish | Matte Textured |
| Light Source | LED |
| Wattage | 3.3 |
| Lumen | 203 |
| Color Temperature (CCT) | 6000k |
| CRI | 70 |
| Operating Temperature | 50F to 104F (10C to 40C) |
| Listings/Certifications | UL Listed, cUL Listed, UL-94 5VA Flame Rated, UL 924 Listed, cUL 924 Listed, NFPA 70 Compliant, NFPA 101 Compliant, Damp-Location |
| Warranty | 1 Year Limited |
Additional Info
