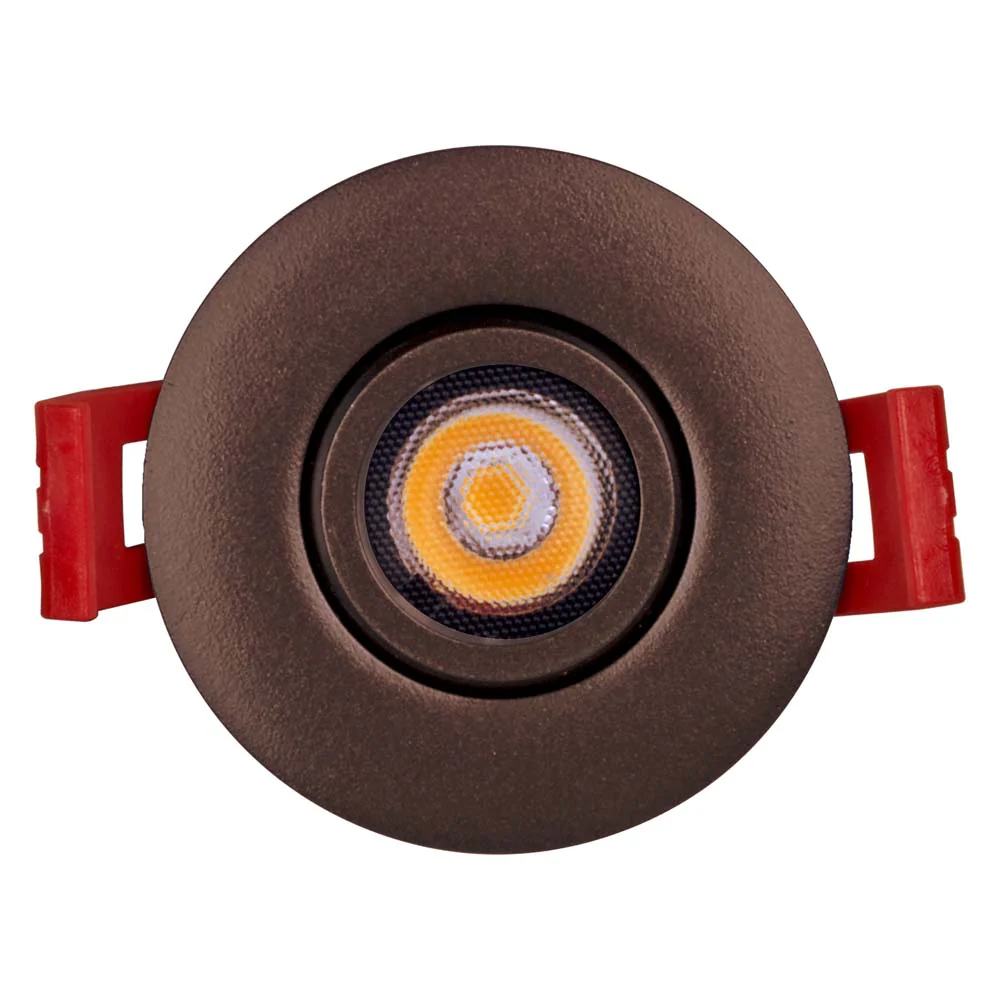

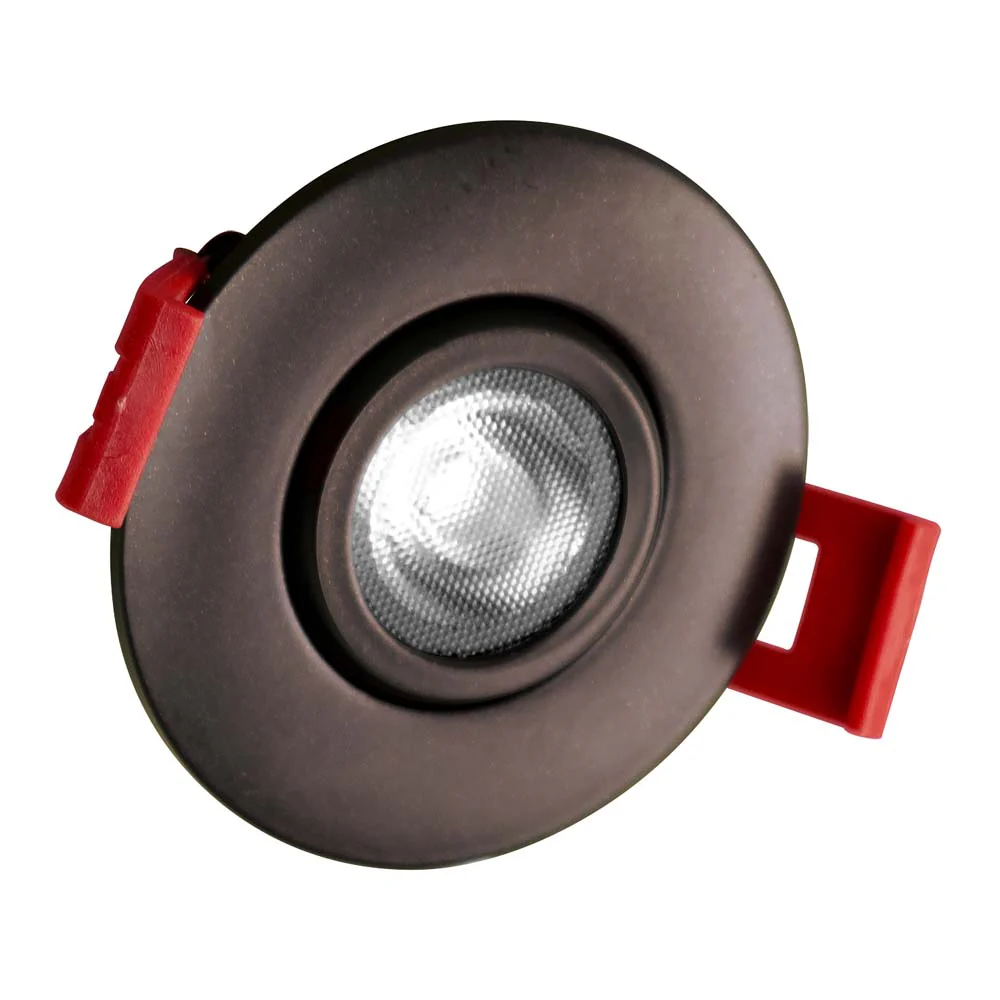

NICOR 2-inch LED Gimbal Recessed Downlight in Oil-Rubbed Bronze, 3000K
Description

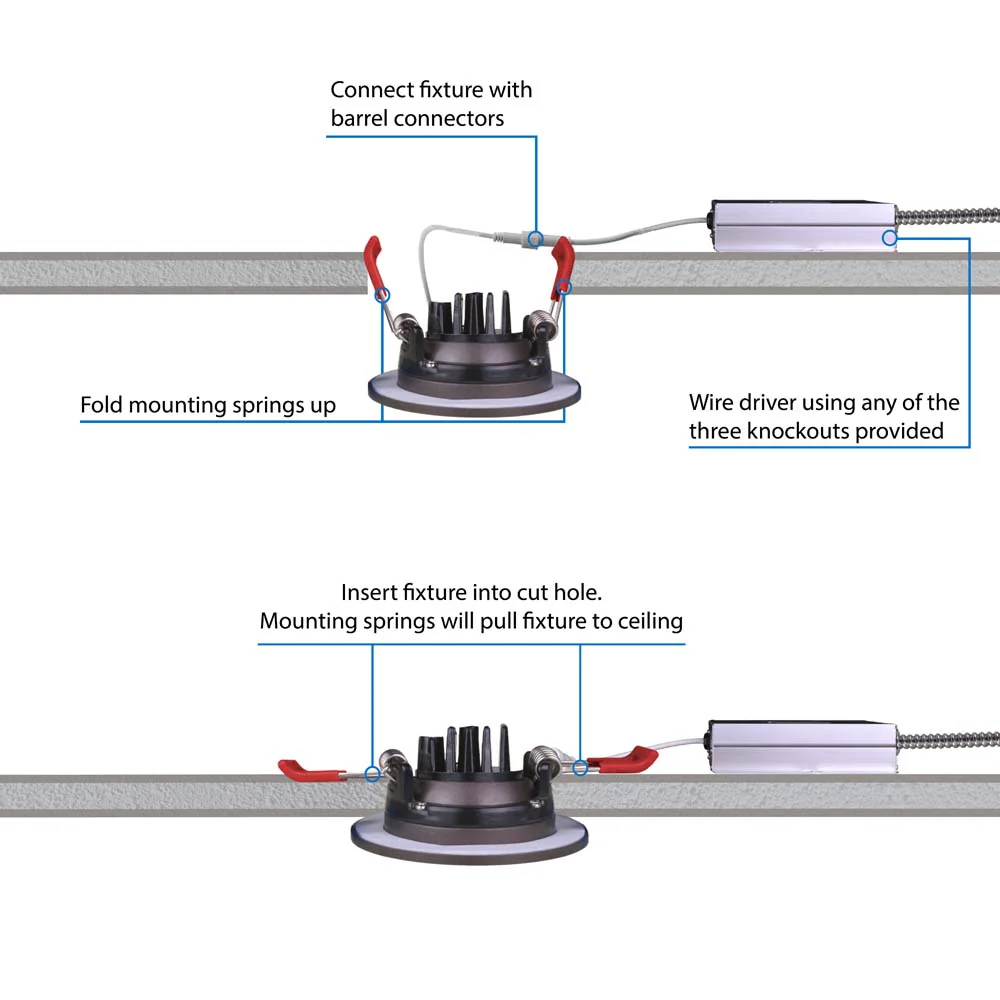

The DGD2 LED Downlight Gimbal features the latest in performance LED Downlight technology, designed to create an attractive visual aesthetic that's incredibly easy to install. The high-performance DGD2 is Dimmable and features a 90 CRI rating, with an R9 value exceeding 50, making it one of the highest quality light fixtures on the market. Installation does NOT require a recessed housing or junction box, only a simple 2.125-inch diameter cut-out in the ceiling using the provided template. The elegantly designed fixture and off-board driver (included) allows for a more flexible installation and an increased lifespan thanks to the superior heat management system separated from the LED module itself. The DGD2 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a recessed housing or junction box. Adding an adjustable, multi-directional light system to highlight artwork or architectural design features in your home just got easier. Freedom from having to use a housing or junction box allows this light to be installed in places others simply cannot. Available in Black, Nickel, Oil-Rubbed Bronze, and White. Choose from 2700K, 3000K, 4000K, or 5000K Color Temperatures. The DGD2 is Energy Star rated, Insulation Contact rated (IC-rated), Title 24 Compliant, Wet-Location rated, and is protected by NICOR's 5-Year Limited Warranty.
Features:- 3000K Color Temperature
- 366 Lumens
- 4.8-Watts
- Includes LED downlight module, plenum-rated cable, and off-board LED driver
- Includes 2.125-inch cut-out template
Specs
| Model Number | DGD211203KRDOB |
| Size (in.) | 2 |
| Product Color | Oil-Rubbed Bronze |
| Finish | Powder Coat |
| Light Source | LED |
| Wattage | 4.8 |
| Wattage Equivalent | 35 |
| Voltage | 120V |
| Lumen Output | 366 |
| Lumens Per Watt | 76.3 |
| Color Temperature (CCT) | 3000K |
| CRI | 90 |
| R9 Value | >50 |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Operating Temperature | 0 to 120F (-18C to 49C) |
| Listings/Certifications | ETL Intertek Listed Title 24 Energy Star IC-Rated Wet-Location |
| Other Certifications | Testing performed in accordance with IESNA standards |
| Warranty (Years) | 5 |
Manual
Installation Guide
Description
The DGD2 LED Downlight Gimbal features the latest in performance LED Downlight technology, designed to create an attractive visual aesthetic that's incredibly easy to install. The high-performance DGD2 is Dimmable and features a 90 CRI rating, with an R9 value exceeding 50, making it one of the highest quality light fixtures on the market. Installation does NOT require a recessed housing or junction box, only a simple 2.125-inch diameter cut-out in the ceiling using the provided template. The elegantly designed fixture and off-board driver (included) allows for a more flexible installation and an increased lifespan thanks to the superior heat management system separated from the LED module itself. The DGD2 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a recessed housing or junction box. Adding an adjustable, multi-directional light system to highlight artwork or architectural design features in your home just got easier. Freedom from having to use a housing or junction box allows this light to be installed in places others simply cannot. Available in Black, Nickel, Oil-Rubbed Bronze, and White. Choose from 2700K, 3000K, 4000K, or 5000K Color Temperatures. The DGD2 is Energy Star rated, Insulation Contact rated (IC-rated), Title 24 Compliant, Wet-Location rated, and is protected by NICOR's 5-Year Limited Warranty.
Features:- 3000K Color Temperature
- 366 Lumens
- 4.8-Watts
- Includes LED downlight module, plenum-rated cable, and off-board LED driver
- Includes 2.125-inch cut-out template
Specs
| Model Number | DGD211203KRDOB |
| Size (in.) | 2 |
| Product Color | Oil-Rubbed Bronze |
| Finish | Powder Coat |
| Light Source | LED |
| Wattage | 4.8 |
| Wattage Equivalent | 35 |
| Voltage | 120V |
| Lumen Output | 366 |
| Lumens Per Watt | 76.3 |
| Color Temperature (CCT) | 3000K |
| CRI | 90 |
| R9 Value | >50 |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Operating Temperature | 0 to 120F (-18C to 49C) |
| Listings/Certifications | ETL Intertek Listed Title 24 Energy Star IC-Rated Wet-Location |
| Other Certifications | Testing performed in accordance with IESNA standards |
| Warranty (Years) | 5 |
Manual
Installation Guide
Description
Description
The DGD2 LED Downlight Gimbal features the latest in performance LED Downlight technology, designed to create an attractive visual aesthetic that's incredibly easy to install. The high-performance DGD2 is Dimmable and features a 90 CRI rating, with an R9 value exceeding 50, making it one of the highest quality light fixtures on the market. Installation does NOT require a recessed housing or junction box, only a simple 2.125-inch diameter cut-out in the ceiling using the provided template. The elegantly designed fixture and off-board driver (included) allows for a more flexible installation and an increased lifespan thanks to the superior heat management system separated from the LED module itself. The DGD2 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a recessed housing or junction box. Adding an adjustable, multi-directional light system to highlight artwork or architectural design features in your home just got easier. Freedom from having to use a housing or junction box allows this light to be installed in places others simply cannot. Available in Black, Nickel, Oil-Rubbed Bronze, and White. Choose from 2700K, 3000K, 4000K, or 5000K Color Temperatures. The DGD2 is Energy Star rated, Insulation Contact rated (IC-rated), Title 24 Compliant, Wet-Location rated, and is protected by NICOR's 5-Year Limited Warranty.
Features:- 3000K Color Temperature
- 366 Lumens
- 4.8-Watts
- Includes LED downlight module, plenum-rated cable, and off-board LED driver
- Includes 2.125-inch cut-out template
Specs
| Model Number | DGD211203KRDOB |
| Size (in.) | 2 |
| Product Color | Oil-Rubbed Bronze |
| Finish | Powder Coat |
| Light Source | LED |
| Wattage | 4.8 |
| Wattage Equivalent | 35 |
| Voltage | 120V |
| Lumen Output | 366 |
| Lumens Per Watt | 76.3 |
| Color Temperature (CCT) | 3000K |
| CRI | 90 |
| R9 Value | >50 |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Operating Temperature | 0 to 120F (-18C to 49C) |
| Listings/Certifications | ETL Intertek Listed Title 24 Energy Star IC-Rated Wet-Location |
| Other Certifications | Testing performed in accordance with IESNA standards |
| Warranty (Years) | 5 |
