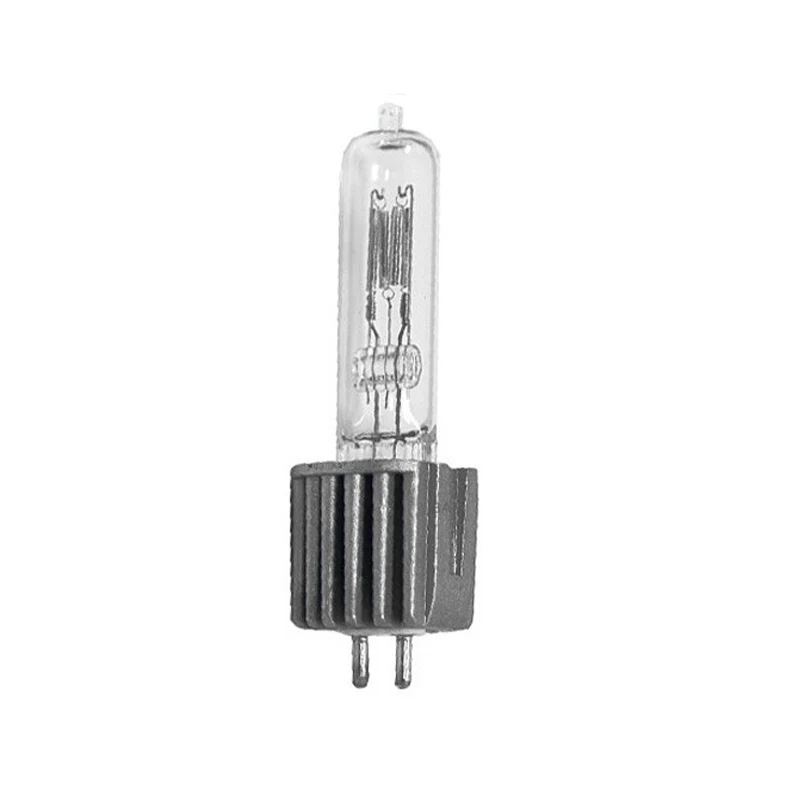

575 watt, tungsten halogen, HPL series, long life, Ultra Compact Filament. A family of stage & studio and architectural light sources and have been designed to work with ETC Source Four fixtures. Though these lamps are available in various wattages and voltages they all feature G9.5 medium 2-pin bases with heat sinks. Bulbamerica HPL-575-115-X runs on 115V and is a member of Long Life series, giving it a life hour rating of 2,000 hours. In addition, this lamp featuresultra compact filament technology, giving the lamp improved light collection and efficiency.

Cross Reference:
- Osram 54807 HPL 575/115/X (UCF)

Abbreviation Name	HPL-575-115-X
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3065K
Diameter (in)	0.741
Filament	4-C8
Lamp Finish	Clear
Luminous Flux (LM)	12360
Maximum Overall Length (in)	3.822
Rated Life (Hours)	2000
Shape	T6
Voltage (V)	115V
Wattage (W)	575W

The HPL575/115 bulbs is used in following equipment
- ETC Source Four
- ETC Source Four 230 V
- ETC Source Four Jr
- ETC Source Four junior 230 V
- ETC Source Four Par & Parnel
- ETC Source Four Par 575
- ETC Source Four Zoom
