EHE 100W 12V PG22 Base Halogen Bulb - 64626 HLX Replacement Lamp

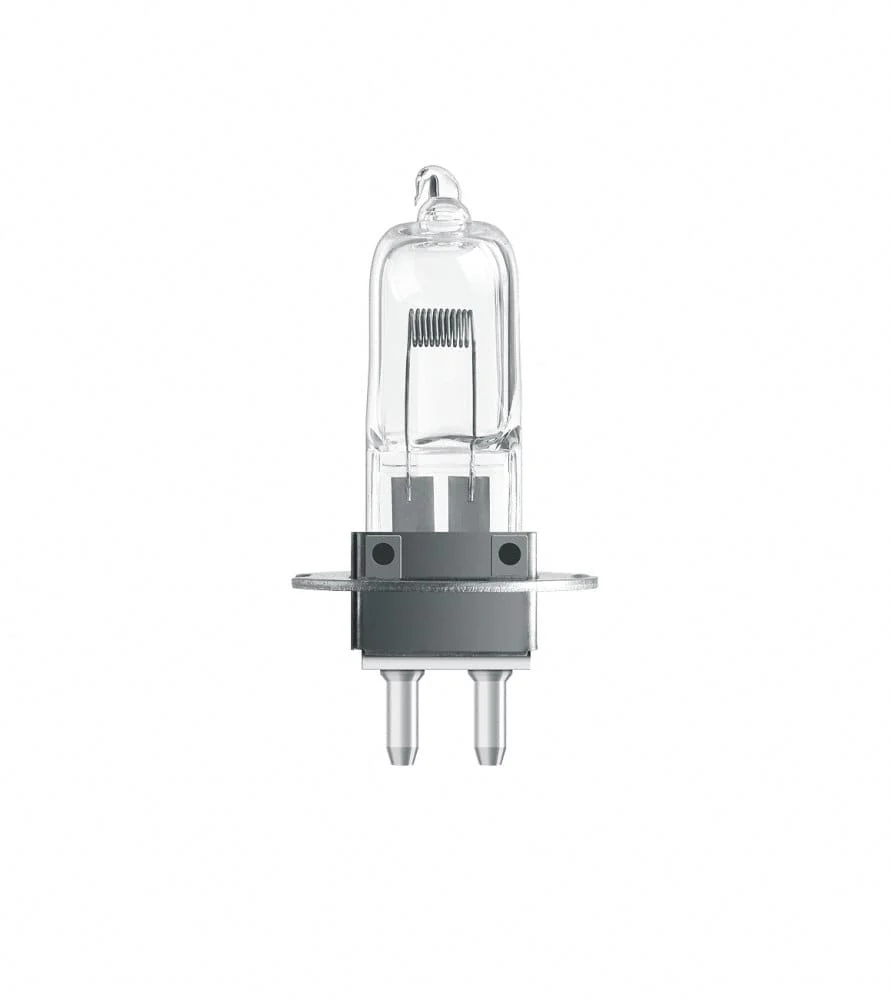

Product image 1

EHE 100W 12V PG22 Base Halogen Bulb - 64626 HLX Replacement Lamp

Description

EHE 100W 12V PG22 Base Halogen Bulb - 64626 HLX Replacement Lamp
Bulbamerica 100watts 12 volts Halogen lamps offer brilliant light, high light output, a constant color temperature and excellent color rendering throughout their lives.

Cross Reference:
- osram 64626
- Philips 6839C
- Ushio 8000219 EHE
- Zeiss 3800-75-1020

Features:
- Xenon instead of krypton as the filler gas
- Compared to standard lamps up to 10 % higher luminous efficacy higher with same power consumption

Applications:
- Medical Microscope Illuminator
- Microscope Illuminator

Specs

Abbreviation Name EHE
ANSI Code EHE
Application Projector
Average Rated Life (hr) 50
Base PG22
Bulb T11,5
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3450
Diameter d (in) 0.472
Diameter d (mm) 12
Distance a (in) 0.702
Distance a (mm) 18
Filament Dimensions Length (in) 0.09
Filament Dimensions Length (mm) 2.3
Filament Dimensions Width (in) 0.164
Filament Dimensions Width (mm) 4.2
Lamp Finish Clear
Length l (in) 1.872
Length l (mm) 48
LIF Code A1/45
Light Center Length - LCL (in) 0.702
Light Center Length - LCL (mm) 18
Luminous Flux (lm) 3500
Maximum Overall Length - MOL (in) 1.872
Maximum Overall Length - MOL (mm) 48
Nominal Voltage (V) 12
Nominal Wattage (W) 100
Operating Position s 90
Reflector Coating 12
Type of Current AC
