The NICOR Lighting 6-inch Recessed Sloped Baffle Trim (17704) creates a simple and attractive finished look for any room. The durable steel constructed trim is designed for PAR30 or BR30 light bulbs rated up to 75-Watts. Baffles are the best choice when looking to reduce glare and absorb excess light. Designed for use in recessed slope housings (between 2/12 and 6/12 pitch), the 17704 produces a genuine finished look without compromising the efficiency of the light source. The 17704 fits standard 6-inch slope recessed housings using coil spring clips (included) for installation. The 17704 measures 8-inches in diameter with an open aperture of 5.5-inches. Use with any of NICORs 6-inch recessed slope housings for a perfect match or use with an existing 6-inch recessed slope housing. The 17704 is protected by NICOR 1 Year Limited Warranty.

Features:
- Requires one PAR30 or BR30 bulb rated up to 75-Watts Max. (not included)
- Designed to fit 6-inch recessed slope housings

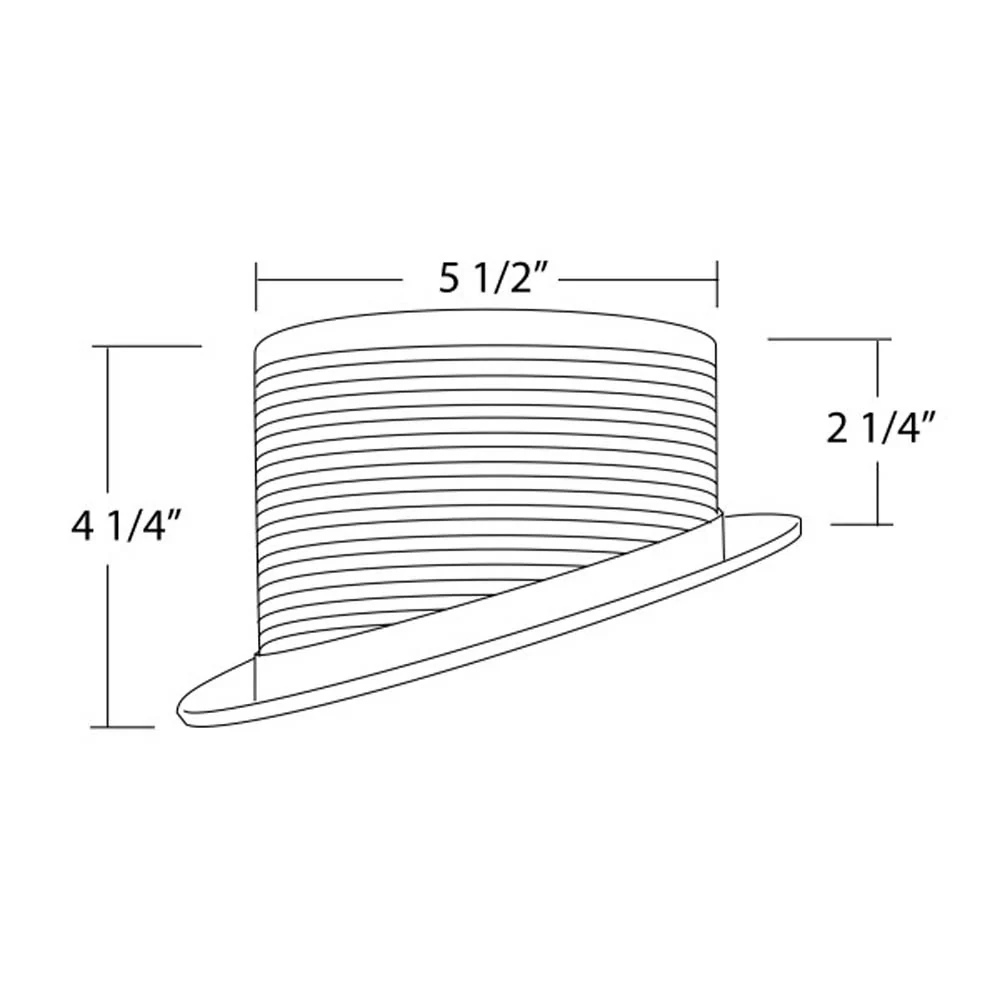

- Trim measures 8-inches in diameter with a 5.5-inch aperture
- Includes Coil Spring Clips for a Fast and Secure Installation
- Step baffle trim design reduces offset glare

Size (in.)	6
Product Color	White, Black Baffle
Finish	Powder Coat
Bulbs Included	No
No. of Bulbs Required	1
Recommended Bulb Type	PAR30, BR30
Bulb Wattage (Max)	75w
Listings/Certifications	UL Listed, cUL Listed
Warranty	1 Year Limited Warranty

Manual:

NIC-17704 Data Sheet
