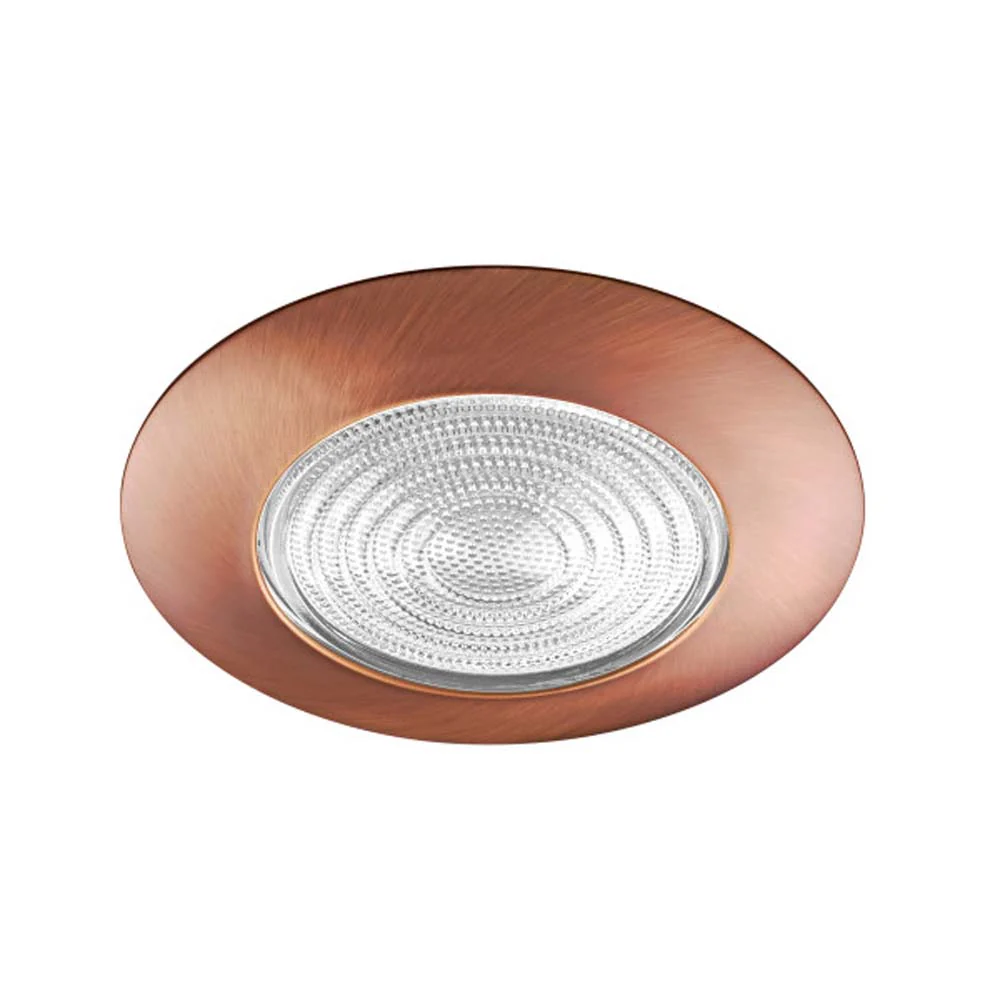

Add a touch of style to your shower with NICORs wet location rated shower trims. The 17502 Series trims feature durable steel construction and a unique Fresnel glass lens to distribute light evenly for maximum coverage. The 17502 series trims are designed to fit standard 6-inch recessed housings using torsion springs (included) for installation. The 17502 measures 8-inches in diameter with a glass lens aperture of 5.25-inches. The trim is perfect for showers, bathrooms, closets and outdoor patios. Use with any of NICORs 6-inch recessed housings for a perfect match, or use with an existing 6-inch recessed housing. Requires one A19 bulb rated up to 60-Watts. The 17502 is protected by NICOR 1 Year Limited Warranty. Available in three finishes, Bronze, White, and Oil-Rubbed Bronze.

Features:
- Requires one A19 bulb rated up to 60-Watts Max. (not included)
- Designed to fit 6-inch recessed housings

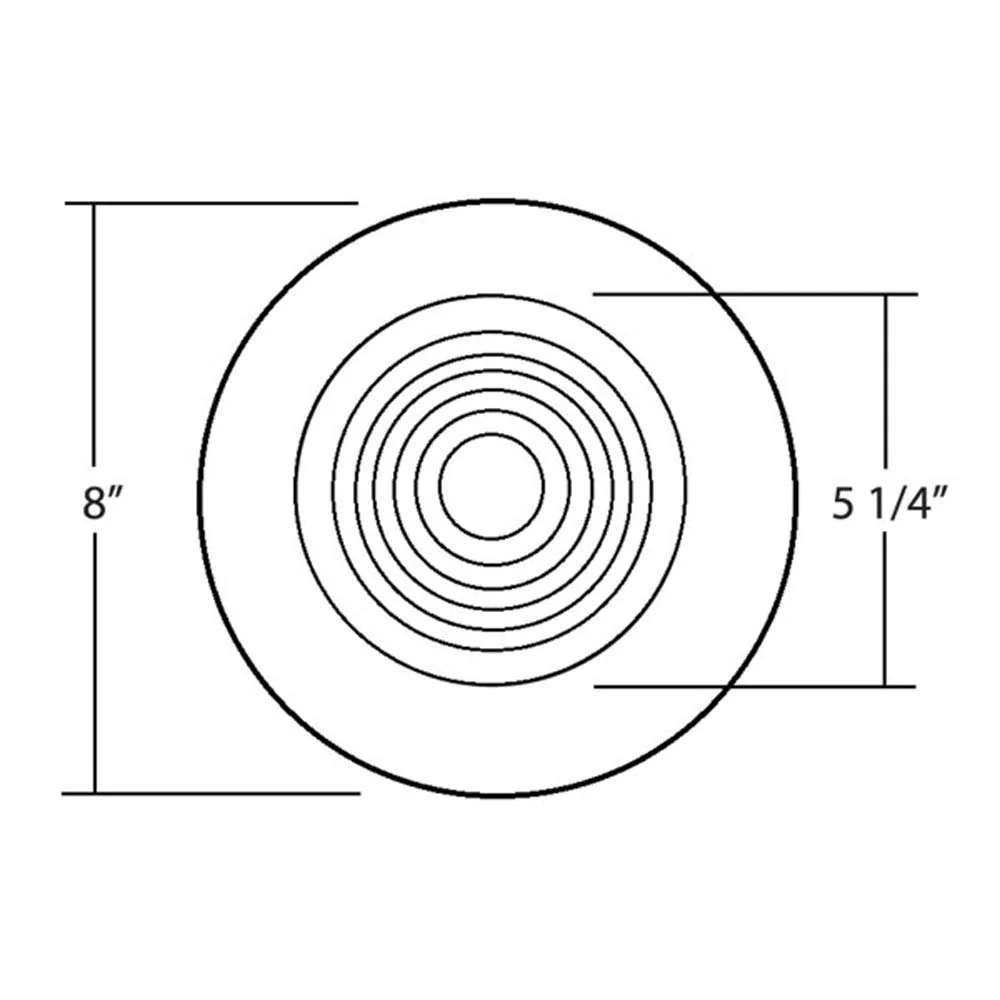

- Trim measures 8-inches in diameter with a 5.25-inch aperture
- Includes Torsion V-Spring Clips for a Fast and Secure Installation
- Comes ready to install. No extra parts required.

Size (in.)	6
Product Color	Bronze
Finish	Powder Coat
Voltage	120v
Bulbs Included	No
No. of Bulbs Required	1
Recommended Bulb Type	A19
Bulb Wattage (Max)	60w
Listings/Certifications	ETL Intertek Listed, Wet-Location
Warranty	1 Year Limited Warranty

Manual:

17502BZ Data Sheet
